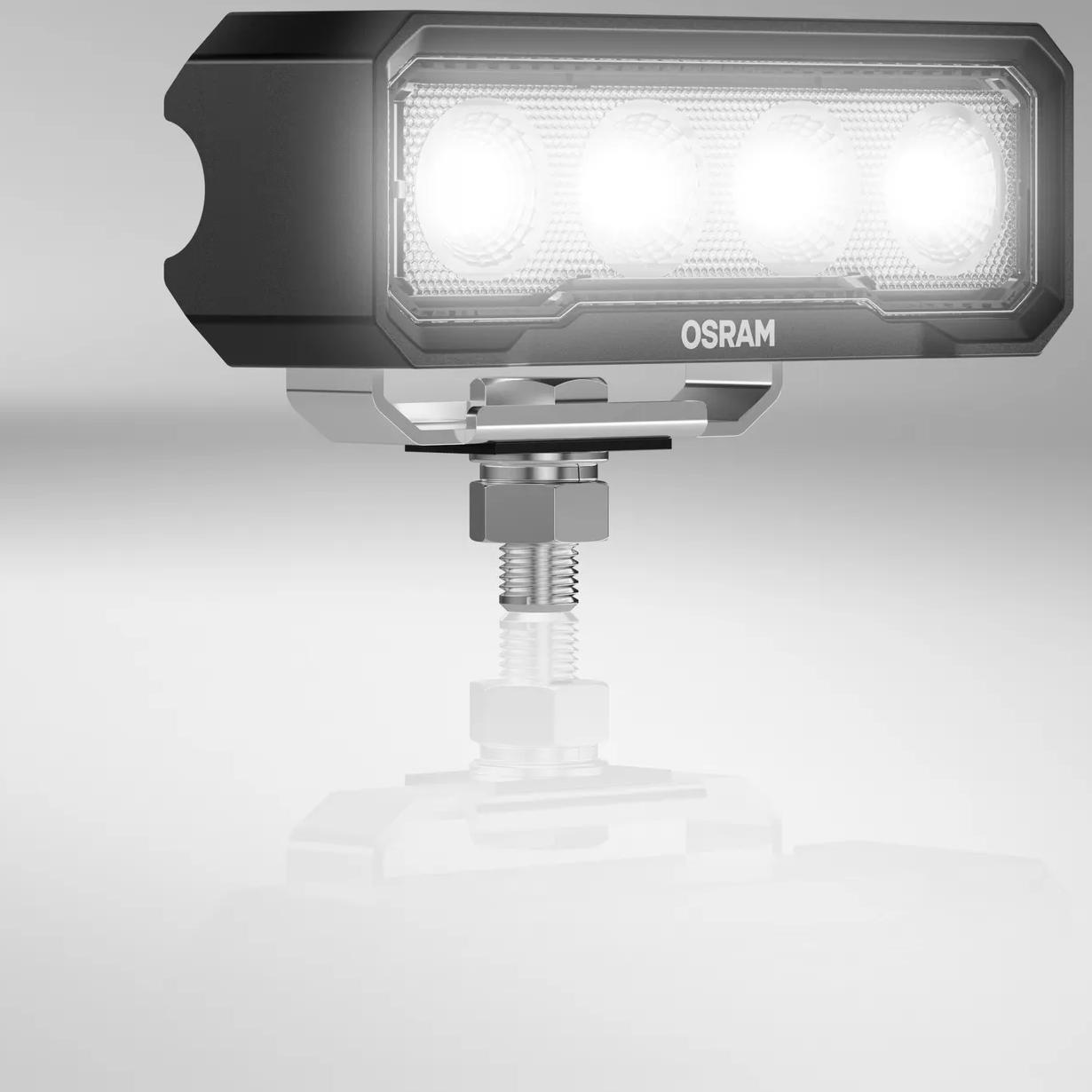

Lightbar WL VX125-WD
Powerful LED working lights
Experience exceptional visibility with the OSRAM LEDriving Lightbar WL VX125-WD – a compact, powerful wide beam LED working light that combines affordability with performance, quality and durability. Designed to meet diverse tasks, the working light impresses with a luminous flux of up to 1500 effective lumens and a wide beam pattern with a light beam up to 48 meters. Emitting a color temperature of up to 6000 Kelvin and equipped with 4 high-performance OSRAM LEDs, the working light delivers consistent and reliable brightness, significantly enhancing safety at work for you and others.
Built for durability, the working light features a robust aluminum housing and a shatterproof polycarbonate lens. It withstands harsh environmental conditions such as dust, water, impacts, extreme temperatures and vibrations, meeting IP6K8 and IP6K9K standards verified in a certified environmental simulation laboratory. Versatile in its application, this LED working light is an effective addition to trucks, construction machinery, agricultural and commercial vehicles, as well as off-road vehicles. In addition, it is ECE R148 approved for use as a reversing light. Whether on the farm, on-site, or in the wilderness, the OSRAM LEDriving Lightbar WL VX125-WD is a reliable and efficient lighting solution that enhances performance and safety in challenging conditions1). OSRAM provides a 2-year guarantee2).
Built for durability, the working light features a robust aluminum housing and a shatterproof polycarbonate lens. It withstands harsh environmental conditions such as dust, water, impacts, extreme temperatures and vibrations, meeting IP6K8 and IP6K9K standards verified in a certified environmental simulation laboratory. Versatile in its application, this LED working light is an effective addition to trucks, construction machinery, agricultural and commercial vehicles, as well as off-road vehicles. In addition, it is ECE R148 approved for use as a reversing light. Whether on the farm, on-site, or in the wilderness, the OSRAM LEDriving Lightbar WL VX125-WD is a reliable and efficient lighting solution that enhances performance and safety in challenging conditions1). OSRAM provides a 2-year guarantee2).
Lightbar WL VX125-WD
Wide Beam Pattern
For a large-area and wide light distributionUp to 48 m long beam
See and be seen with OSRAM2 in 1: Front and rear application
Matched to individual requirements and needs for versatile applicationsIP & IK protection classes
Tested and validated in a DIN-certified environmental simulation laboratoryTechnical Data
Product information
Application (Category and Product specific)
Working light application
General Product Information
Global order reference
LEDWL115-WD
Electrical Data
Nominal voltage
12/24 V
Nominal wattage
19 W
Test voltage
13.2 V
Photometric Data
Nominal luminous flux
1500 lm
Light distance at 1lx
48 m
Color temperature
6000 K
Physical Attributes & Dimensions
Width
128.3 mm
Height
45.0 mm
Product weight
430.00 g
Length
79.0 mm
Lifetime Data
Lifespan Tc
> 5000 hr
Guarantee
2 years
Additional product data
Connector to lamp
Open wire
Capabilities
Technology
LED
Certificates & standards
Approval marks – approval
E9 approval
Standards
ECE R10
ECE category
Type of protection
IP6K8/IP6K9K
Logistical data
Commodity code
85122000900
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Candidate list substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe use instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration no. in SCIP database
b6ce884d-3054-4cb8-b789-20cb35249d48
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172419826 |
FS
| 1 | 172mm x 64mm x 89mm | 481.00g | 0.98dm³ |
| 4062172419833 |
VS
| 12 | 362mm x 212mm x 209mm | 6137.00g | 16.04dm³ |
